Grace Church in New York |
New York, New York |
Opus 65, 2013 |
| Great | Swell | Choir | |||||
| 16' | Double Open Diapason | 16' | Contra Gamba | 8' | Principal Dolce | ||
| 16' | Bourdon | 8' | Façade Principal | 8' | Stopped Diapason | ||
| 8' | First Open Diapason | 8' | Violin Diapason | 8' | Flauto Dolce | ||
| 8' | Second Open Diapason | 8' | Rohr Flute | 8' | Unda Maris (c) | ||
| 8' | Spire Flute | 8' | Salicional | 4' | (Octave) | ||
| 4' | Principal | 8' | Voix Celeste (G) | 4' | Rohr Flute | ||
| 4' | Spitz Flute | 4' | Principal | 2' | Gemshorn | ||
| 2 2/3' | Twelfth | 4' | Open Flute | 1 1/3' | (Larigot) | ||
| 2' | Fifteenth | 2 2/3' | Nazard | II | (Sesquialtera) | ||
| 1 3/5' | Seventeenth | 2' | Fifteenth | III-IV | (Scharf) | ||
| V | Cornet (mounted) | 2' | Wald Flute | 16' | Cor Anglais | ||
| V | Mixture | 1 3/5' | Tierce | 8' | Cremona | ||
| IV | Scharf | V | Mixture | Tremulant | |||
| 16' | Double Trumpet | 16' | Contra Bassoon | 8' | Tuba (Solo) | ||
| 8' | Trumpet | 8' | Cornopean | 8' | Harmonic Trumpet (Solo) | ||
| 4' | Clarion | 8' | Oboe | ||||
| 4' | Clarion | ||||||
| Tremulant |
| Solo | Chancel Pedal | Main Pedal | |||||
| 8' | Harmonic Flute | 16' | Bourdon | 32' | Double Open Diapason (ext.) | ||
| 8' | Gamba | 8' | Cello (oak, façade) | 32' | Contra Bourdon (ext.) | ||
| 8' | Gamba Celeste(C) | 8' | Spitz Gedackt | 16' | Open Diapason | ||
| 8' | Viol d'Orchestre | (4' | Clarabella) | 16' | Violone | ||
| 8' | Viol Celeste (tc) | 16' | Bassoon | 16' | Subbass | ||
| 4' | Flauto Traverso | 8' | Schalmei | 8' | Principal | ||
| 16' | Corno di Bassetto | 8' | Spire Flute | ||||
| 8' | Orchestral Oboe | 4' | Fifteenth | ||||
| 8' | Vox Humana | V | Mixture | ||||
| Tremulant | 32' | Contra Ophicleide (ext.) | |||||
| 8' | Tuba (15" w.p.) | 32' | Contra Fagott (ext.) | ||||
| 8' | Harmonic Trumpet (15" w.p.) | 16' | Trombone | ||||
| 16' | Fagott | ||||||
| 8' | Trumpet | ||||||
| 4' | Clarion | ||||||
| 8' | Tuba (Solo) | ||||||
| 8' | Harmonic Trumpet (Solo) |
Couplers: |
SW/GT, CH/GT, SO/GT 16' 8' 4', SO/SW 16' 8' 4', SW/GT, SO/CH 16' 8' 4', GT/PD, SW/PD, CH/PD, SO/PD 8' 4' |
Great: On the south side, in upper case, 16' Double Open Diapason in façade |
Swell: Enclosed, in upper case on north side, 8' Facade Principal and 16' Contra Gamba basses in facade |
Choir: In lower case on south side |
Solo: Enclosed, in the Roosevelt organ chamber |
Chancel Pedal: In lower case on north side |
Main Pedal: Located in Roosevelt chamber |
Action: Mechanical key action; self adjusting |
Console: Detached and reversed |
Bone keys with ebony sharps |
Manual compass: C-c'''', 61 notes |
Pedal compass: C-g', 32 notes |
Electric solenoid stop action with solid state combination action and sequencer |
Balanced expression pedals for Swell and Solo (electric) |
Windchests: pallet and slider, with E.P. high pressure reeds and large bass pipes |

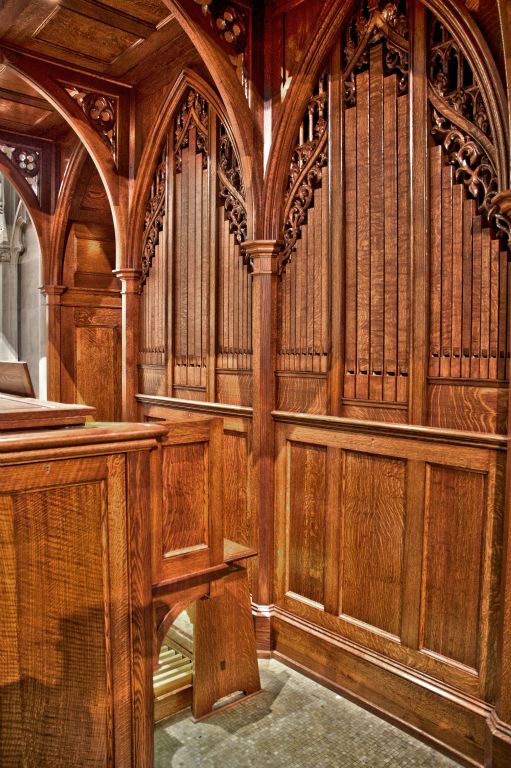

Organ Cases: One case on each side of the chancel, standing in the arches. |
Cases constructed of solid, quartered, wormy White Oak |
Pipes: Constructed of lead-tin alloys or seasoned wood. |
Wind System: All divisions on 19th century style parallel-rise reservoirs, wooden wind conductors within the organ |
Five blowers in acoustical enclosures. |
Stops: 76(81) |
Pipes: 4664 |
Pitch : a' = 440 |
Temperament: Taylor and Boody "Grace Church" |
